Form Factor
4U
CPU Number
2
Memory Number
32
- Equipped with Intel Xeon 6 processors featuring 86 cores, eight-channel DDR5 memory up to 6400MHz and a maximum TDP of 350 watts per socket
- Fully compatible with NVIDIA MGX architecture, enabling fast and large-scale deployment
- High-density 4U server for eight dual-slot high-end NVIDIA H200 GPUs, NVIDIA RTX PRO™ 6000 Blackwell Server Edition, NVIDIA RTX PRO™ 4500 Blackwell Server Edition, or Intel® Gaudi® 3 PCIe AI Accelerator, supporting up to 600 watts each
- Optimized server configuration, five PCI 5.0 slots for high-bandwidth PCIe NICs and DPU to enable performance scaling
- ASUS-exclusive toolless design empowers easy maintenance for maximum efficiency
- ASUS Control Center IT management software and hardware-level Root-of-Trust solution

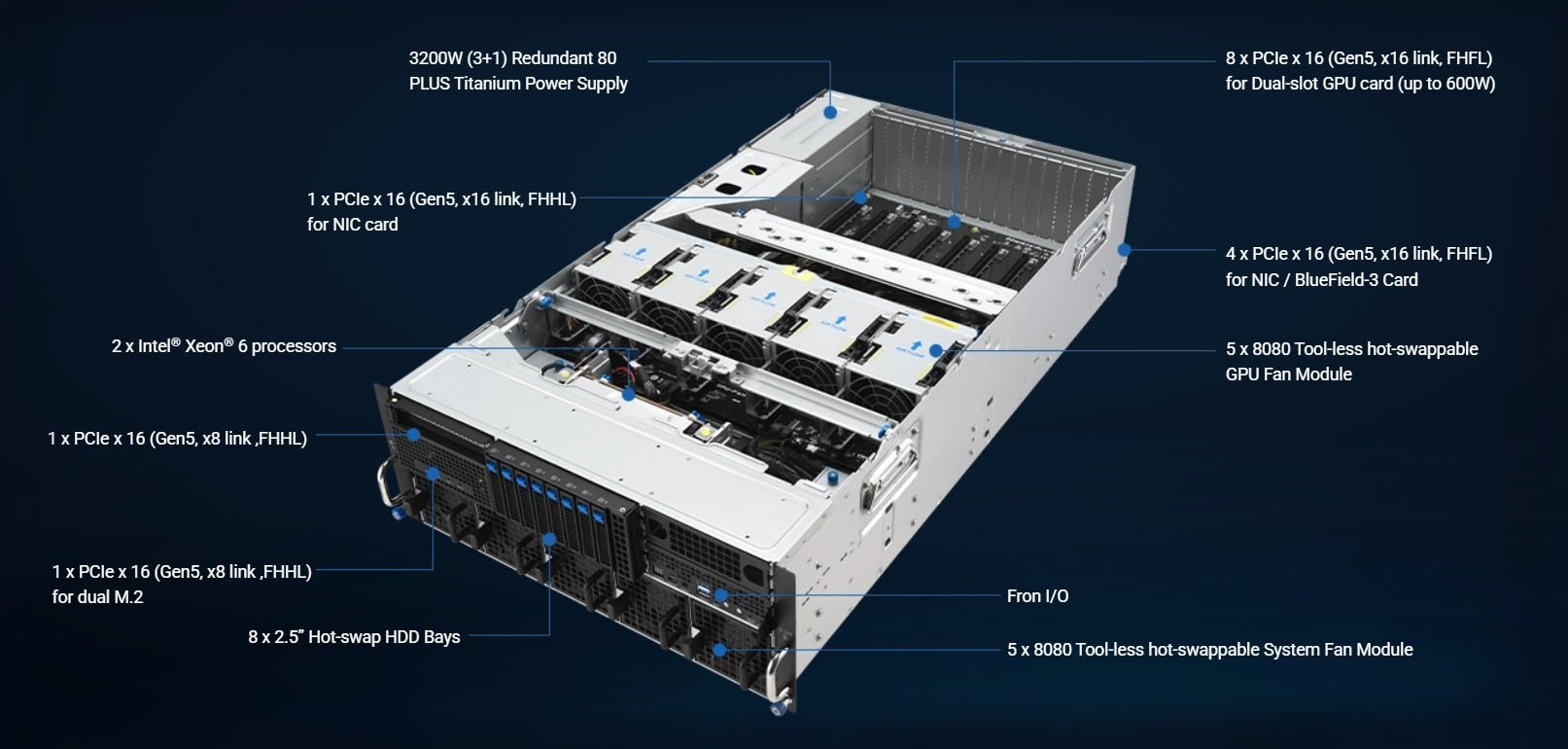

Powered by Intel Xeon 6 dual-processors, ESC8000-E12P delivers exceptional performance, featuring top-tier GPUs, faster GPU interconnects, and higher-bandwidth fabric. This powerhouse server supports up to eight dual-slot GPUs, either active or passive, and offers flexible scalability with options for NVIDIA® NVLink® Bridge. This configuration allows seamless scaling and performance enhancement, making ESC8000-E12P an ideal choice for tackling the most Enterprise AI and HPC tasks.
ESC8000-E12P takes AI infrastructure to the next level by leveraging NVIDIA® MGX™, an open and flexible reference design that ensures future-proof compatibility. With its innovative modular architecture offering up to 160 customizable configurations, clients can easily tailor their solutions to meet specific AI and high-performance computing needs. MGX sets a new industry benchmark for modular server design, enhancing ROI and slashing time to market — empowering businesses to stay ahead in the fast-evolving AI landscape.

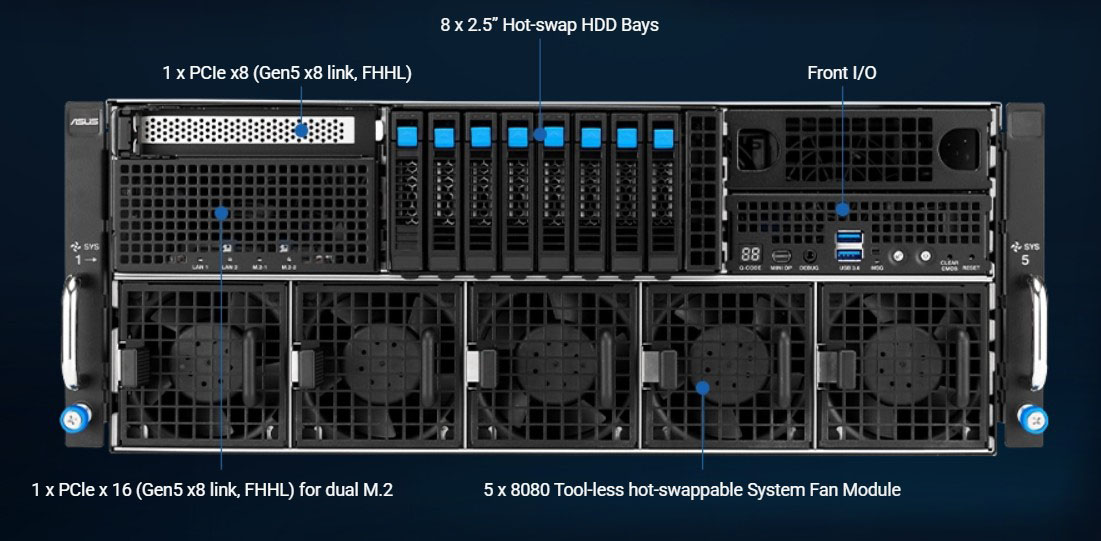

Front Panel

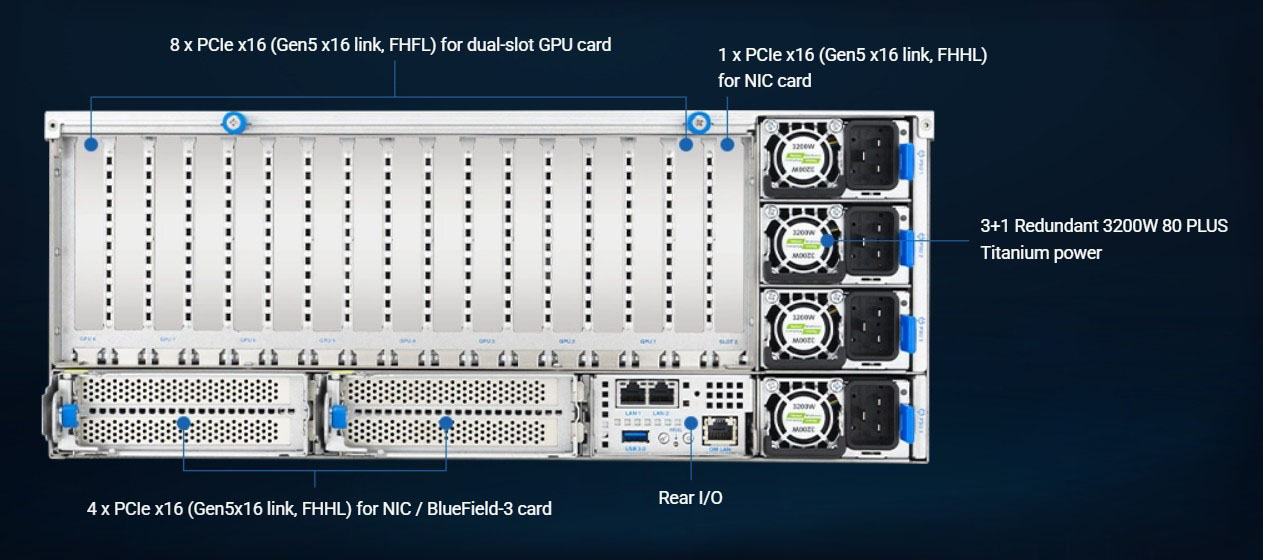

Rear Panel
Intel Xeon 6 processors represent a significant leap forward in performance and efficiency, specifically designed to meet the demands of advanced AI, networking and data center workloads. Featuring an all-P-core architecture, these processors deliver exceptional computational power, enabling enterprises to tackle the most demanding applications with ease. With support for high-speed DDR5 memory and PCIe 5.0 I/O, the Intel Xeon 6 processors ensure seamless scalability and enhanced data throughput, making them ideal for modern high-performance environments. Additionally, their optimized energy efficiency and robust design cater to the evolving needs of next-generation data centers, solidifying Intel's leadership in AI and networking solutions.
This server features the latest Broadcom PEX89000 series of switches, supporting up to 1,024Gbps (128GBps) of raw bandwidth per port (x16) to create high-availability hyper-scale systems. It uses the PCI Express 5.0 bus to empower communication between in-rack hosts and endpoints, simplifying connectivity while providing the highest PCIe-switching performance available for data center servers, storage and networks. Take advantage of these industry-first features today for the most demanding hyper-converged AI/ML/DL applications.

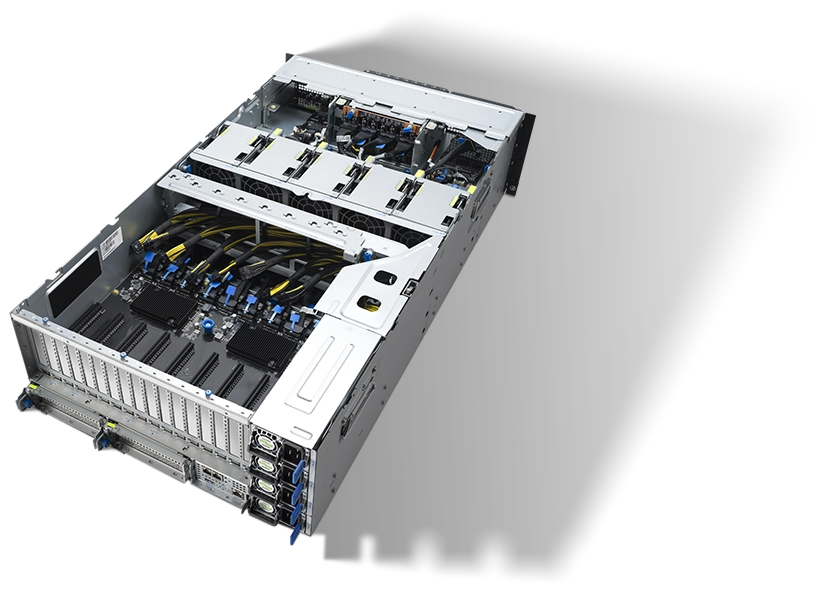

Designed for easy maintenance with a refined mechanical structure, ESC8000-E12P allows the entire machine to be disassembled completely without tools.
Toolless removal
Quick installation
Toolless removal and quick installation for PCIe card
ASUS ASMB12-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.
ASUS Control Center (ACC) is remote IT-management software application designed for monitoring hardware and software IT assets and inventory status, and enabling seamless remote BIOS configurations and updates, efficient IT diagnostics and troubleshooting and enhanced security with hotfix updates — allowing easier server management for any IT infrastructure.
