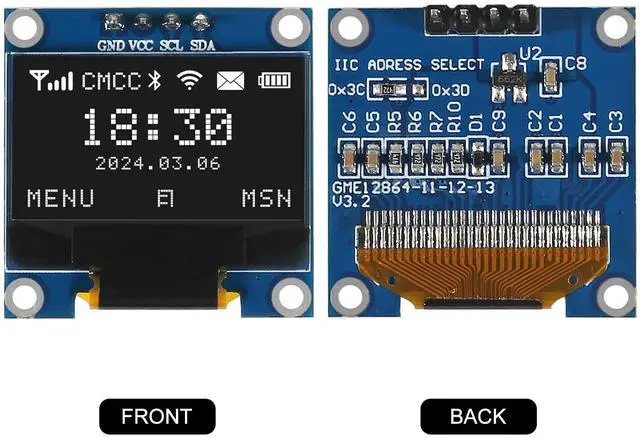

KEHIPI 5PCS 0.96 Inch OLED I2C IIC Display Module 12864 128x64 Pixel SSD1306 Mini Self-Luminous OLED Screen Board Compatible with Arduino Raspberry Pi (White)
- 5PCS 0.96 Inch OLED Display Screen Module Compact Self-Luminous Mini Screens for Arduino Projects-White
- Compatibility: This OLED display is compatible with a wide range of platforms including Arduino/Mega, Raspberry Pi, 51 MCU, STM32, and ESP32

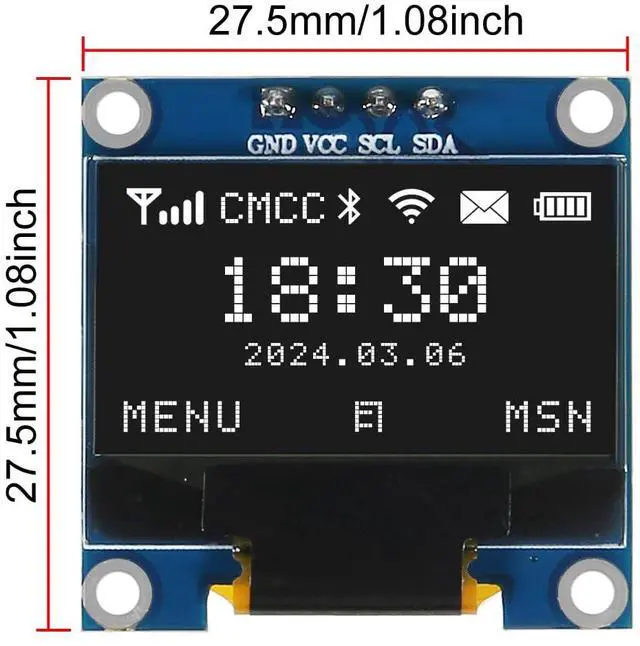

- 0.96 inch,Resolution: 128 x 64, View angle: > 160°, Support voltage: 3.3V-5V DC, Power consumption: 0.04W during normal operation, full screen lit 0.08W; Self-Luminous: Each pixel emits light independently for superior contrast and efficiency.

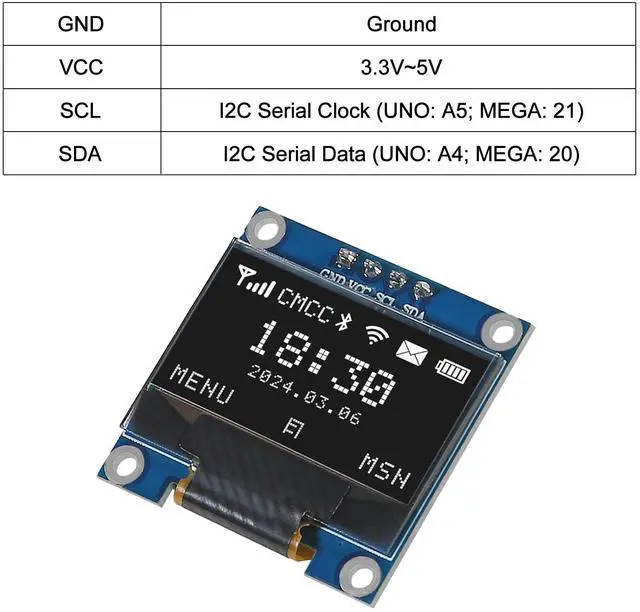

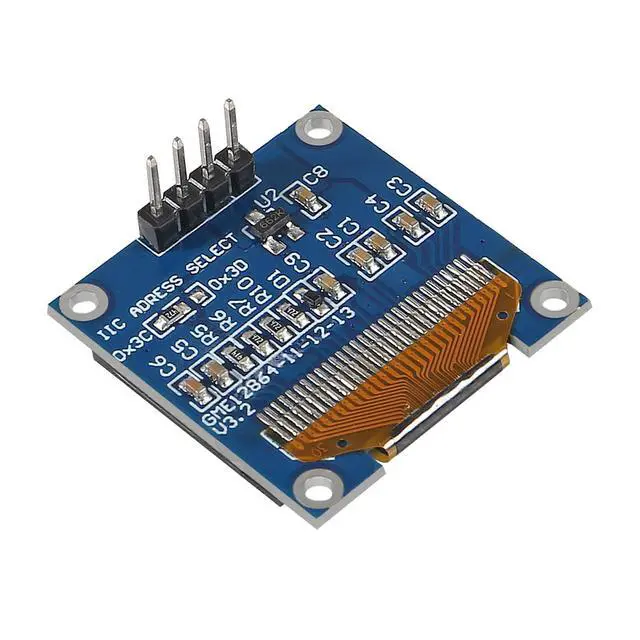

- Embedded Driver IC: SSD1306. Communication: I2C/IIC Interface, only need two I / O ports;High-Resolution Display: Clear 128x64 OLED screen ensures excellent visibility.
- No backlight is required, and the display unit can be self-luminous. It has ultra-high contrast, bright and clear dots, and it is easy to read even small fonts
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description
OLED self-luminous, no backlight
High resolution: 128x64 (same resolution as 12864, high PPI)
Large viewing angle: greater than 160° (a screen with the largest viewing angle in the display)
Ultra-low power consumption: normal display 0.06w (far lower than TFT display)
Wide voltage power supply (3V~5V), compatible with 3.3V and 5V level logic, no need for level conversion chips

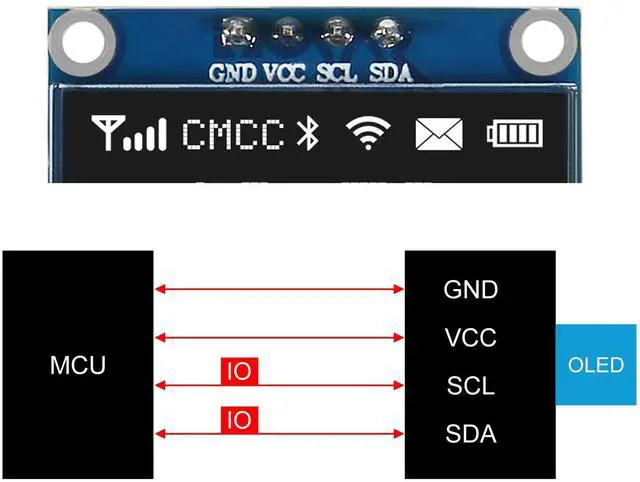

The IIC interface only needs 2 IOs to light up easily
Military-grade process standards, long-term stable work
Provide rich multi-platform routines and provide underlying driver technical support
Yellow blue, white, blue three color display scheme optional
Package :

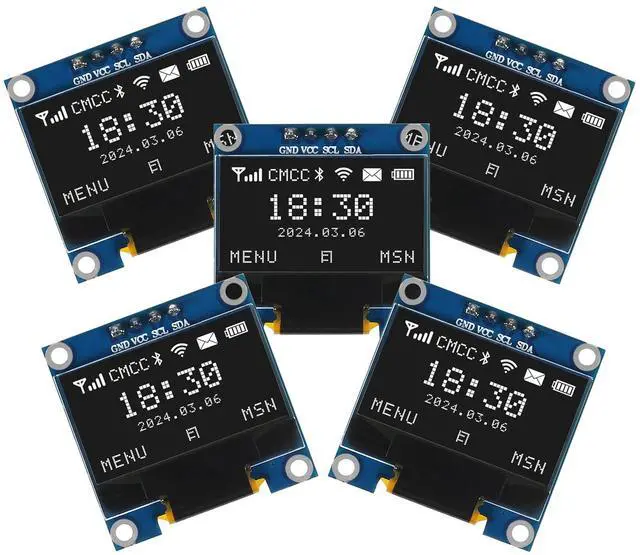

5 x 0.96 oled module
