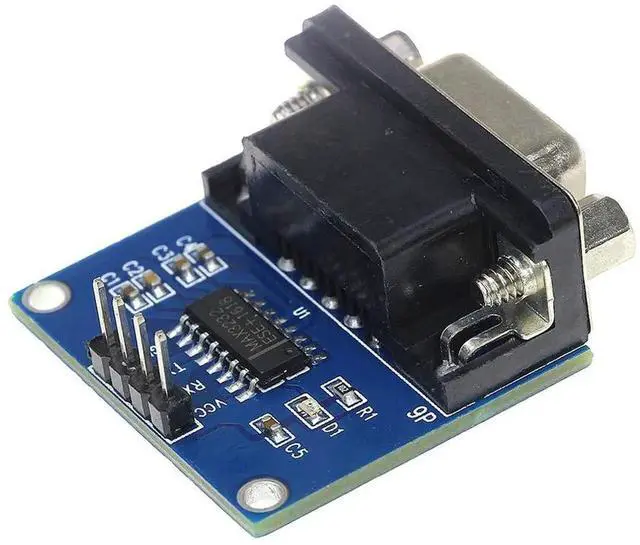

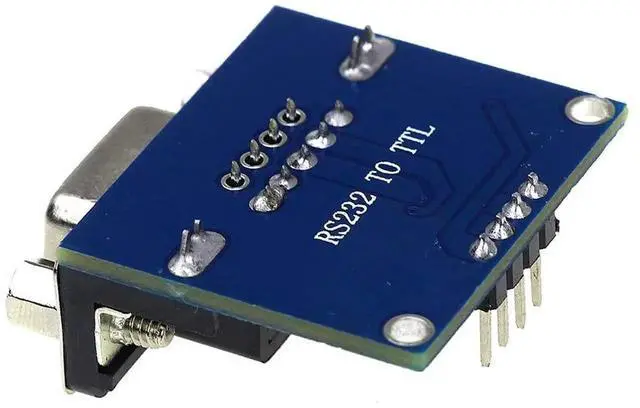

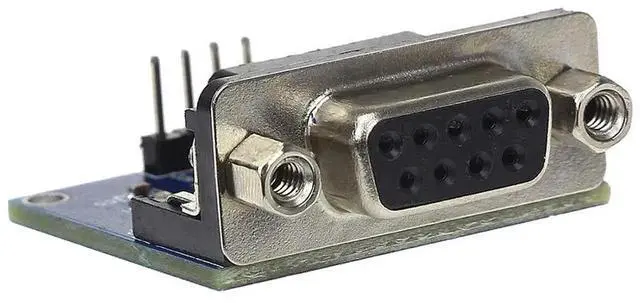

Vszerda 5pcs RS232 to TTL Converter Module COM Serial Port Board MAX3232 MAX232CSE
- MAX3232 RS232 to TTL Converter Module
- Operating Voltage: 3.3V~5V
- Four Interface: VCC, GND, RXD, TXD
- Communication Chip: MAX3232 chip
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This product is widely used in radio modification, mobile phone brush machine, XBOX360 brush machine, GPS, car testing, DVD brush machine, hard disk repair, set-top box upgrades. Microcontroller programmed.
The main parameters:
Control chip: domestic new MAX3232
Working voltage: 3.3V-5V DC
Working current: 6MA
Power supply: external
Interface: TXD, RXD, GND, VCC
Overall dimensions: 33mm * 32mm * 16mm
Package Included:

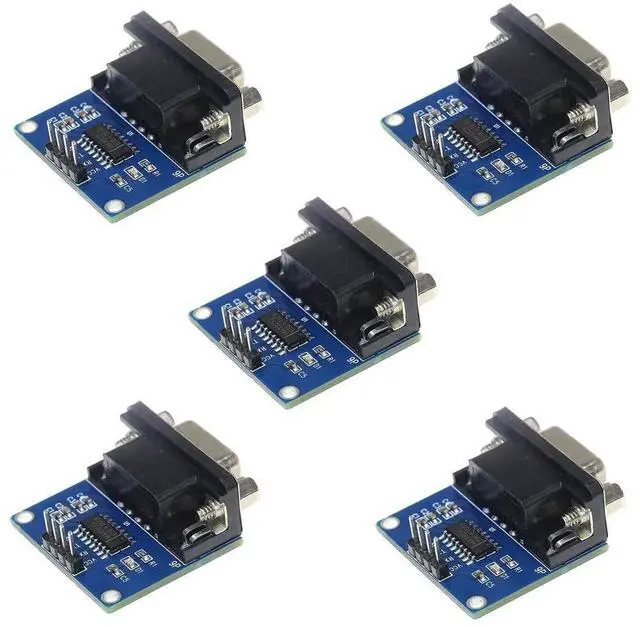

5 * RS232 To TTL Converter Module
