Vszerda Add On Cards Mini PCI-E to PCI Express 1X Adapter Riser Extension Cord Mini PCIE to PCIE X1 USB 2.0 Card Riser +FFC Cable

Add On Cards Mini PCI-E to PCI Express 1X Adapter Riser Extension Cord Mini PCIE to PCIE X1 USB 2.0 Card Riser +FFC Cable

About Description:

Item Introduction:

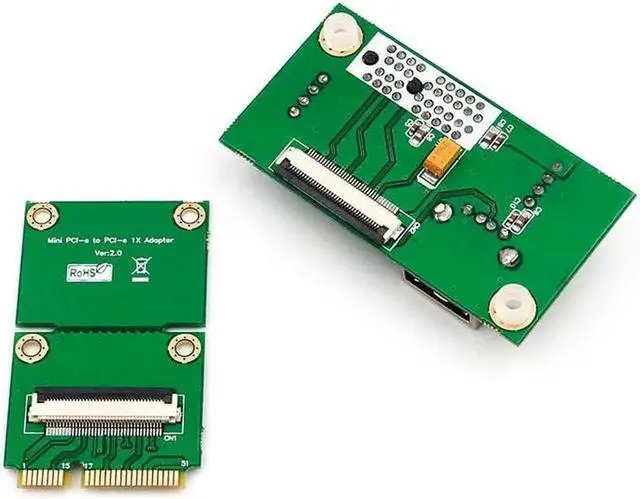

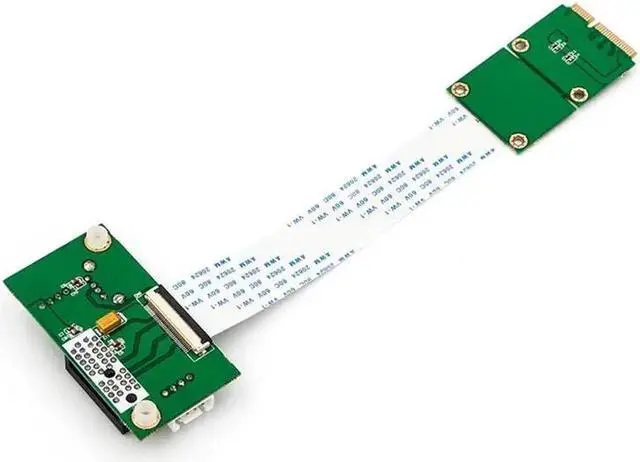

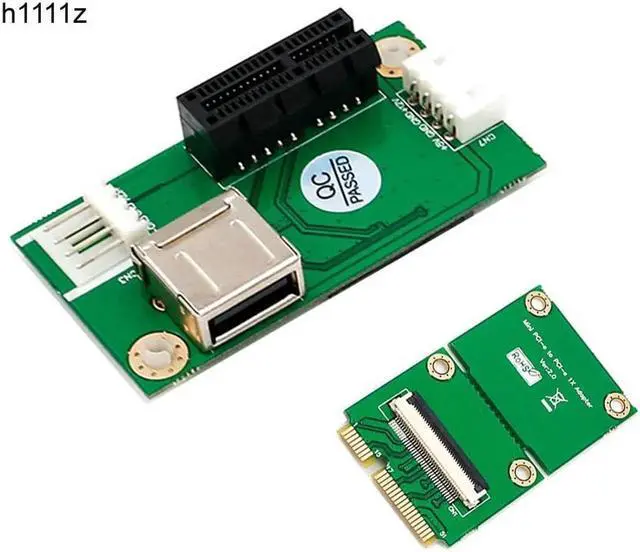

1. This Extender is a debug and test tool to extend PCI-Express slot from MiniCard (mPCIe) slot. Design the FFC (Flat Flexible Cable) cable for flexible use.

2. Not only for Full-size MiniCard adapter but also Half-size MiniCard by removing extra Full-size extensions.

3. As PCI Express x1 connector is edge-free / multi-lane, x4, x8 and x16 PCIe Cards are also available.

4. This extender is designed to minimize the signal degradation effects of the extender by proven design techniques. It's also a powerful tool for engineers and factory tests.

5. This is FFC cable Length= 30cm

Specification:

1. PCI Express Mini Card Electromechanical Specification Revision 1.0

2. PCI Express base Specification 1.1 (Up to 2.5G pbs)

3. USB Specification, Release 2.0 Hi-Speed (Up to 480Mbps)

4. System Management Bus (SMBus) Specification, Version 1.1

5. PCI Express Card Electromechanical (CEM) Specification 1.1

6.

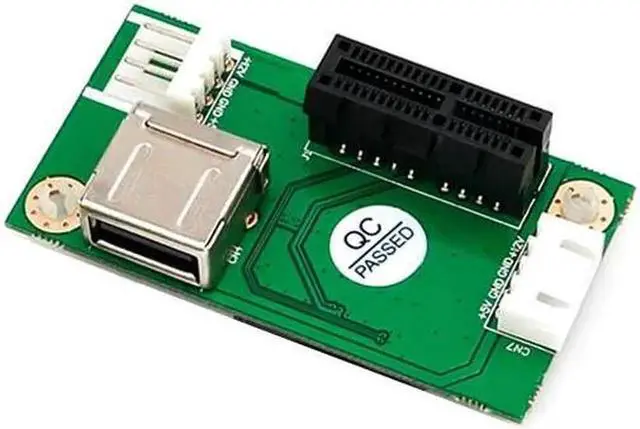

Power Supply: 3.3V (For PCIe Slot, from MiniCard), 5V (For USB, from FDD 4 pin), 12V (For PCIe, from FDD 4pin)

7.

FFC Cable: Width 18.5 mm, Thickness 0.1 mm

Function:

Easy Installation, Plug and Play

No drivers needed for this MiniCard to ExpressCard Adapter

Support Windows 2000/Server 2003/XP & XP 64-bit/Vista & Vista 64-bit/ 7 & 7 64-bit

Supports both PCI Express based and USB 2.0 based MiniCard slot

Supports USB 2.0 480 Mb/s data rate

Miscellaneous: WAKE#, PERST#

Requirements

Learn more about the Detailed Specifications
