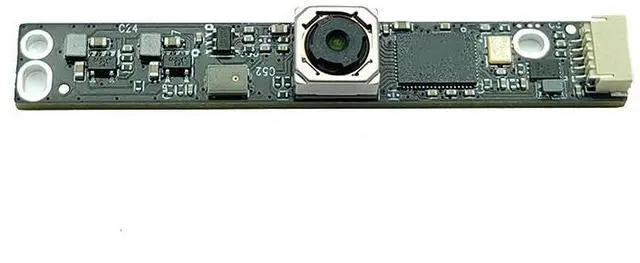

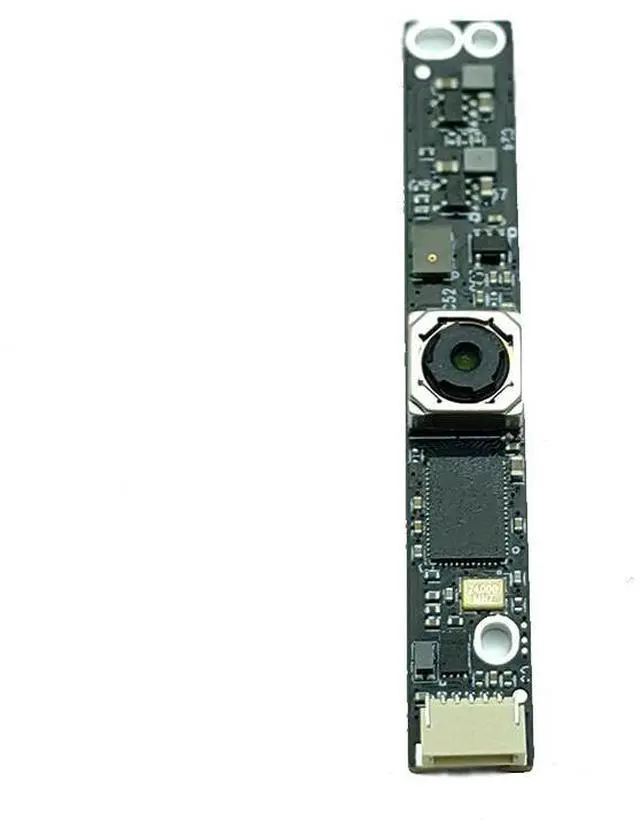

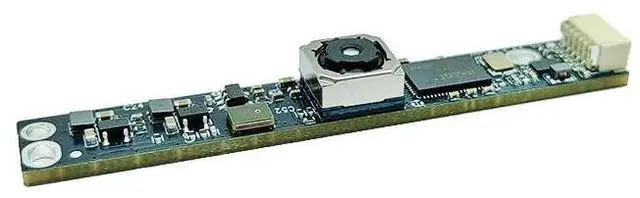

    8MP HD 1/3.13-inch IMX319 CMOS USB Camera Module Autofocus 75 ° 3280H x 2460V UVC-compliant, Plug and Play

    Be the first to review this product...
    • 1/3.13-inch IMX319 CMOS Sensor
    • 3280H x 2460 V
    • MJPEG, YUY2
    • Autofocus(PDAF)  75°
    • UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    1.Main Parameters



    Product Name

    8MP USB2.0 Camera Module

    Product Code

    WN-L186.K28NB8MP YV4.0

    Module Size

    62*10mm

    Image Sensor

    1/3.13-inch IMX319 CMOS Sensor

    Max. Resolution

    3280H x 2460 V

    Pixel Size

    1.4*1.4µm

    Output Format

    MJPEG, YUY2

    Field of View

    75°

    Lens

    EFL:3.79mm, F.NO:2.0, 5P+IR650NM

    Scanning Speed

    0.1s

    Focus Mode

    Autofocus(PDAF)

    Shutter Mode

    Electronic Rolling Shutter

    Power Supply

    VCC-5V

    Output & Power Supply

    High Speed USB2.0

    Interface

    5PIN 1.0mm Connector (SM05B-SRSS-TB)

    Controllable Parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure

    Supported OS

    UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.

    Connection Cable

    Default1.0 Meter USB Cable

    2.Supported Resolutions and Frame Rates


    Formats

    Resolutions

    Frame Rates

    MJPEG

    3280x2460

    30FPS



    2592x1944

    30FPS



    2560x1440

    30FPS



    1920x1080

    30FPS



    1600x1200

    30FPS



    1280x720

    30FPS



    640x480

    30FPS

    YUY2

    1920x1080

    5FPS



    1280x720

    10FPS



    640X480

    30FPS

    3.PIN Definitions


    Pin No.

    Signal Names

    Descriptions

    1

    VCC

    DC 5V

    2

    DM

    USB2.0 Data-

    3

    DP

    USB2.0 Data+

    4

    GND

    Ground

    5

    GND

    Ground

    4.Working Conditions


    Working Voltage

    DC 5V

    Working Current

    210mA

    Working Temperature

    -10°C ~ 60°C

    Storage Temperature

    -20°C ~ 85°C

    Humidity

    80 ~85%



    https://counter.pushauction.com/7d4818af-b9d4-43ef-9c72-def6910cb6b8/7432cd7d-92e1-45f0-9170-bfbbcac7d238.jpg

    Arducam B0292 is a new member of the Arducam's USB camera family. It's an 8MP, based on the 1/4" IMX219 image sensor, UVC compliant, autofocus USB 2.0 camera.

    No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.

    This 8MP IMX219 high resolution color COMS sensor and the autofocus feature make it can be widely used in the home surveillance system, monitoring 3D Printer, object recognition and tracking, or other machine vision application.

    SPECIFICATIONS

    Camera

    - Sensor: 1/4 IMX219

    - Resolution: 8MP 3264H x 2448V

    - Data Format: MJPG/YUY2

    - Frame Rate:
    MJPG 15fps@3264 x 2448, 30fps@1080P;
    YUY2 15fps@720P, 20fps@640 x 480

    Lens

    - Field of View (FOV)H= 60°

    - Focusing Range: 40mm to infinity

    - IR Sensitivity: Integral IR filter, visible light only

    Functionality and Compatibility

    - Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.

    - System Compatibility: Windows, Linux, and Mac with UVC

    Power

    - Power Supply: DC 5V

    - Working Current: MAX 200mA

    Physical

    - Operating Temp.: -4°F~158°F (-20°C~+70°C)

    - Dimension: 38mmx38mm

    - Cable Length: 3.3ft (1M)


    Product information

    Condition New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.
    Country of Origin China
    MPN Does Not Apply
    Brand Unbranded
    Model WN-L186K28NB8MP YV4.0
    Connectivity USB2.0
    Features Autofocus
    Maximum Photo Resolution 3280*2460
    Frame Rate 30 fps
    Color Black
    UPC Does not apply
