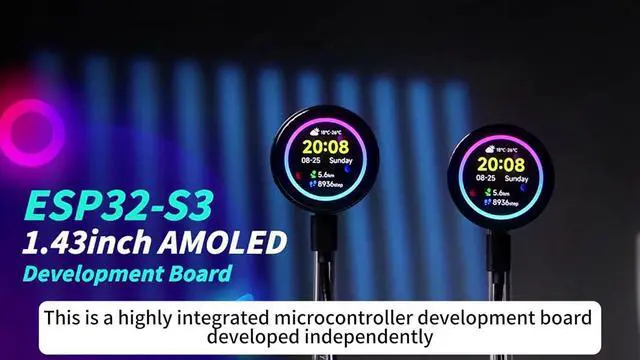

ESP32-S3 1.43inch AMOLED Touch Display Development Board, 466x466 QSPI Interface AMOLED Round LCD, Onboard Accelerometer and Gyroscope Sensor R T C Chip, ESP32 with Display, Multiple Interfaces
- ESP32-S3 1.43inch AMOLED Display Development Board, adopts ESP32-S3R8 chip. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. The AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image ( This is Without Case Version).
- Supports 2.4GHz W-i-F--i (802.11 b/g/n) and Blue too th 5 (LE), with an onboard antenna. Supports switching to use external antenna via resoldering an onboard resistor. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB P SRAM.
- Onboard 1.43inch AMOLED display, QSPI interface, 466 × 466 resolution. 178° wide viewing angle,Excellent Display Performance, 16.7M color, wide viewing angle. Supports capacitive touch function controlled via I2C interface, with interrupt support.
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Onboard PCF85063 R T C chip w
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ESP32-S3 1.43 inch AMOLED Display Development Board, adopts ESP32-S3R8 chip. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. The AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image ( This is Without Case Version). ^^Supports 2.4GH z W-i-F--i ( 802.11 b/g/n) and Blue too th 5 (LE), with an onboard antenna. Supports switching to use external antenna via resoldering an onboard resistor. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB P SRAM.
^^Onboard 1.43 inch AMOLED display, QSPI interface, 466 × 466 resolution. 178° wide viewing angle, Excellent Display Performance, 16.7M color, wide viewing angle. Supports capacitive touch function controlled via I2C interface, with interrupt support. ^^Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Onboard PCF85063 R T C chip w
^^Onboard 1.43 inch AMOLED display, QSPI interface, 466 × 466 resolution. 178° wide viewing angle, Excellent Display Performance, 16.7M color, wide viewing angle. Supports capacitive touch function controlled via I2C interface, with interrupt support. ^^Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Onboard PCF85063 R T C chip w
