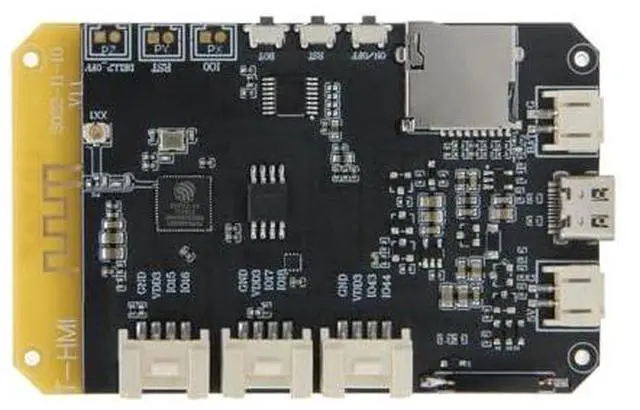

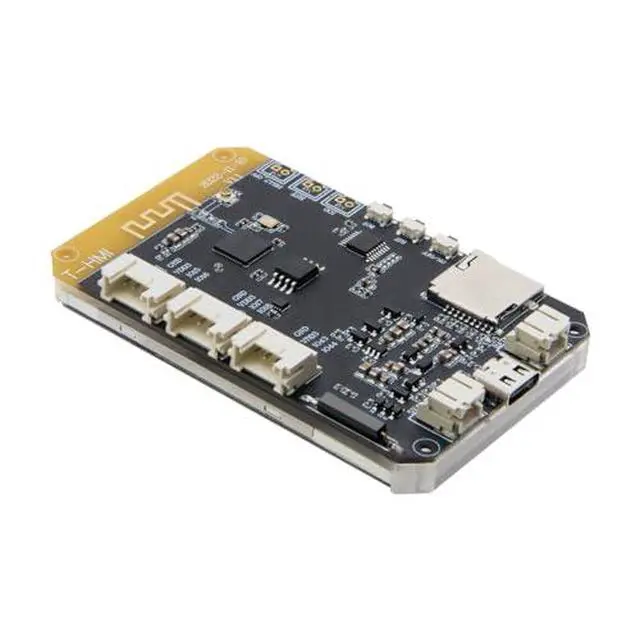

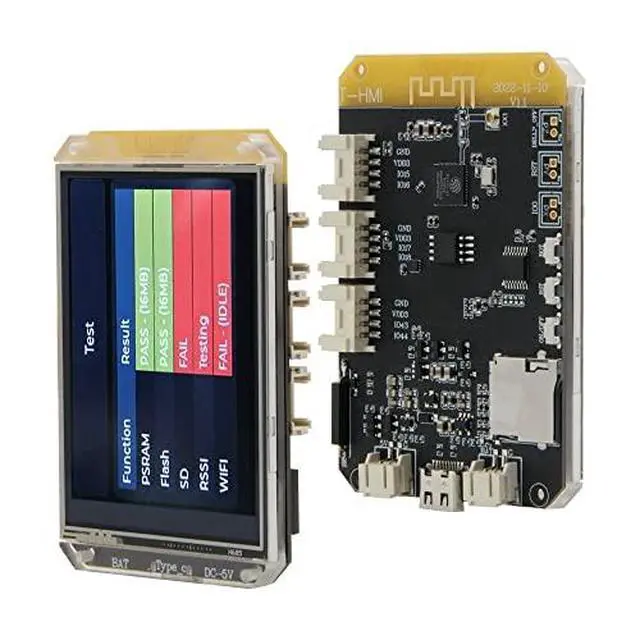

LILYGO T-HMI ESP32-S3 2.8 inch ST7789 LCD Touch Display WiFi Bluetooth Module Support TF Type C TTGO Development Board
- Flash16MB , PSRAM: 8MB
- T-HMIThe board supports TF card, WIFI and Bluetooth 5.0
- FeatureThe board is equipped with onboard, Type C USB interface, and 5V DC socket

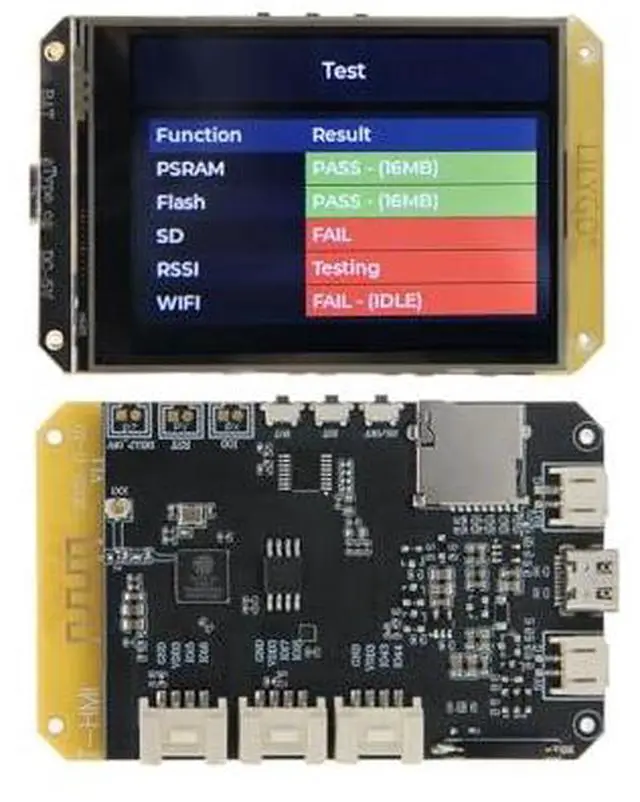

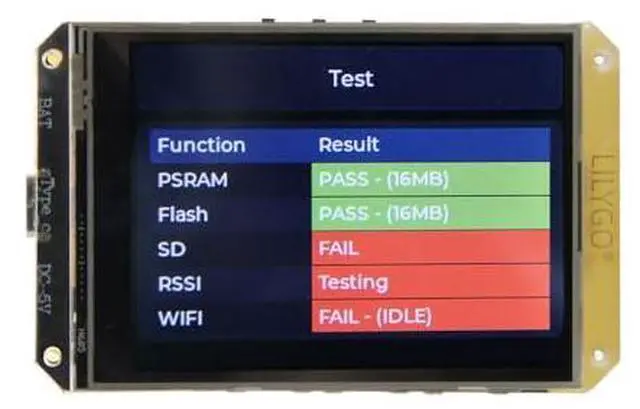

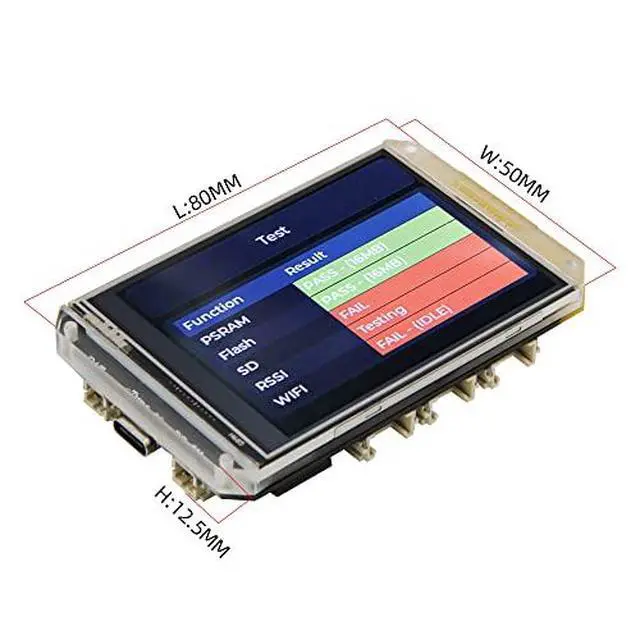

- Screen DisplayThe screen uses a 2.8-inch ST7789 LCD and is equipped with a resistive screen stylus/pen
- GitHubgithub.com/Xinyuan-LilyGO/T-HMI
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description Product
GitHub: github. com/Xinyuan-LilyGO/T-HMI PIN MAP Quick Start The board uses USB as the JTAG upload port. When printing serial port information on USB, CDC_ON_BOOT configuration needs to be turned on. If the port cannot be found when uploading the program or the USB has been used for other functions, the port does not appear. Please enter the upload mode manually. Press and hold the BOOT button when the power is off, the button is located behind the RST button. When the USB is connected, first press and hold the BOOT button, then click reset and then release the BOOT button Shpping List 1 X T-HMI 1 X PH 2.0 battery cable 1 X resistive screen stylus/ pen 1 X Grove Wire
Specifications
T-HMI is currently LILYGO's largest touch display screen equipped with ESP32-S3 chipGitHub: github. com/Xinyuan-LilyGO/T-HMI PIN MAP Quick Start The board uses USB as the JTAG upload port. When printing serial port information on USB, CDC_ON_BOOT configuration needs to be turned on. If the port cannot be found when uploading the program or the USB has been used for other functions, the port does not appear. Please enter the upload mode manually. Press and hold the BOOT button when the power is off, the button is located behind the RST button. When the USB is connected, first press and hold the BOOT button, then click reset and then release the BOOT button Shpping List 1 X T-HMI 1 X PH 2.0 battery cable 1 X resistive screen stylus/ pen 1 X Grove Wire
