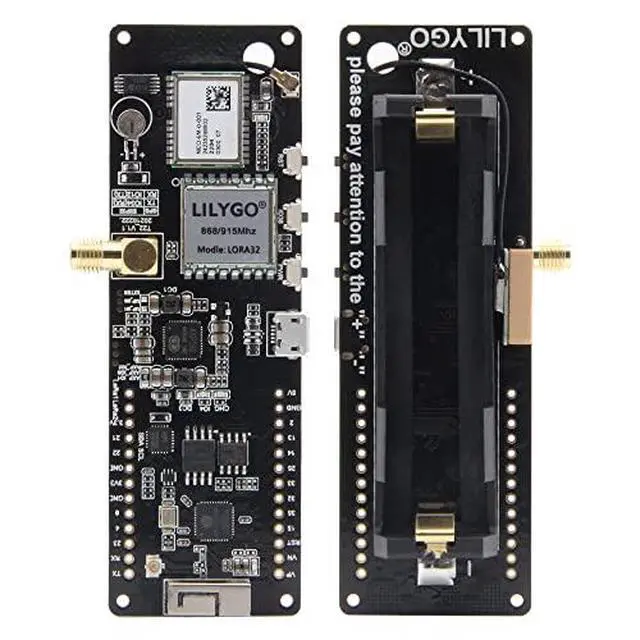

LILYGO LORA32 T-Beam ESP32 SoftRF Development Board WiFi BLE CH9102F Chip TTGO OLED Module

Product description Due to the discontinuation of AXP192, it has now been replaced by AXP2101. Add reverse battery protection module This product is factory burned SoftRF firmware. The programming is slightly different, please refer to Github github. com/Xinyuan-LilyGO/LilyGO-T-Beamfor details! Pin Map Product Parameter T-Beam is a low-power development board that integrates ESP32, LoRa, and GPS and supports Wi-Fi Bluetooth short-range LoRa long-distance communication functions. T-Beam IPEX NEO-M8N GNSS Version, change GPS / LoRa chip and LoRa antenna based on T-Beam. LoRa chip using Semtech SX1262 LoRa RF transceiver chip design, works in the 868/915MHz ISM frequency band, integrates a highly stable TCXO 32MHz crystal oscillator, half-duplex transceiver module, power up to +22dBm, too -139dBm receiving sensitivity.

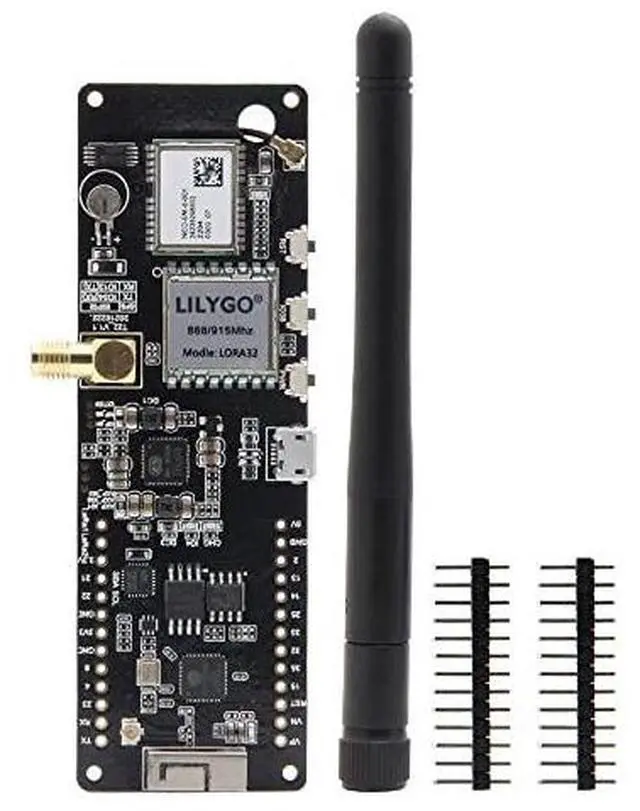

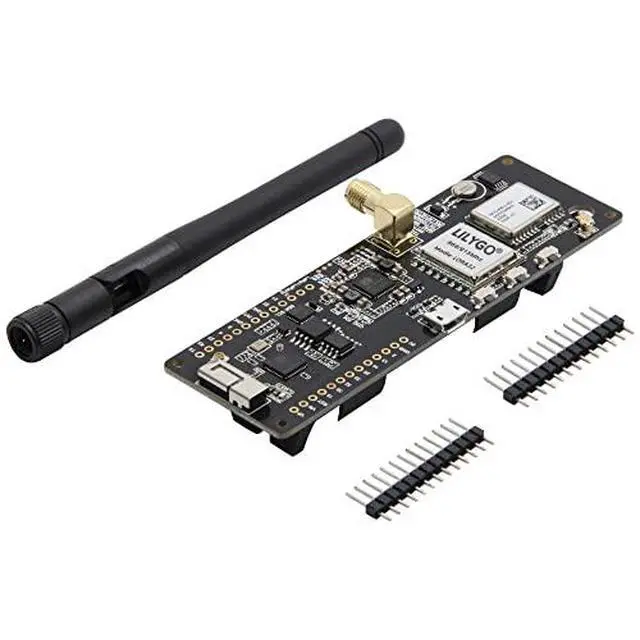

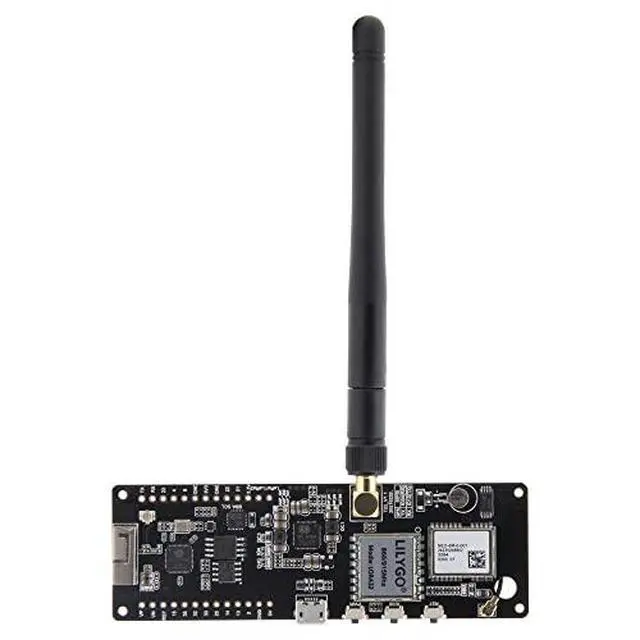

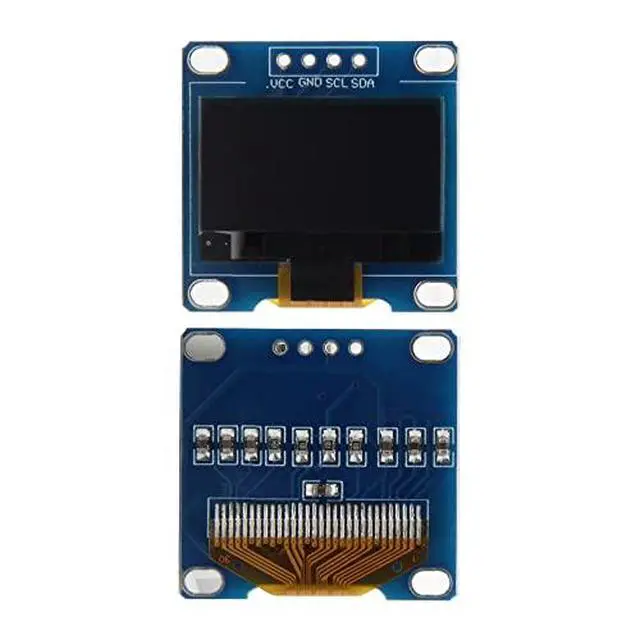

The LoRa antenna interface is changed from SMA to IPEX, which is more convenient to store. GPS chip using Semtech NEO-M8N GNSS chip design, also support GPS Beidou GLONASS, stronger positioning signal, The positioning speed is faster. Product Description Shipping List 1*LILYGO T-BEAM 1* 915 MHZ ANTENNA 2*PIN 1*OLED GPS GPS modules NEO-6M with ceramic antenna Save the configuration parameter data EEPROM Down with data backup battery There are LED signal indicator
Default Baud Rate: 9600 Power
Power Supply Input: USB 5V/1A
Charging current: 500mA
Battery Input: 3.7 - 4.2V
Working voltage: 1.8 ~ 3.7 v Acceptable current10~14mA
Transmit current: 120mA@+20dBm 90mA@+17dBm 29mA@+13dBm
Operating frequency: 915MHz version
Transmit power: +20dBm Frequency error+/-15KHz FIFO space 64Byte Interface form SPI Sleep current 0.2 uA@SLEEP 1.5 uA@IDLE Operating temperature -40- +85 If GPS doesn't work, you may encounter the following situations: Install meshtastic firmware before, and now reset the GPS when u change to another firmware.
reset steps: github. com/Xinyuan-LilyGO/LilyGo-LoRa-Series/tree/master/firmware/GPS_%20reset_test When GPS is weak indoors, it can be used outdoors The GPS antenna is not installed stably, you can check whether the interface is fastened to the GPS antenna More information Github github. com/lyusupov/SoftRF/wiki/Prime-Edition-MkII Github github. com/Xinyuan-LilyGO/LilyGO-T-Beam SoftRF github. com/LilyGO/SoftRF Reset steps github. com/Xinyuan-LilyGO/LilyGo-LoRa-Series/tree/master/firmware/GPS_%20reset_test
