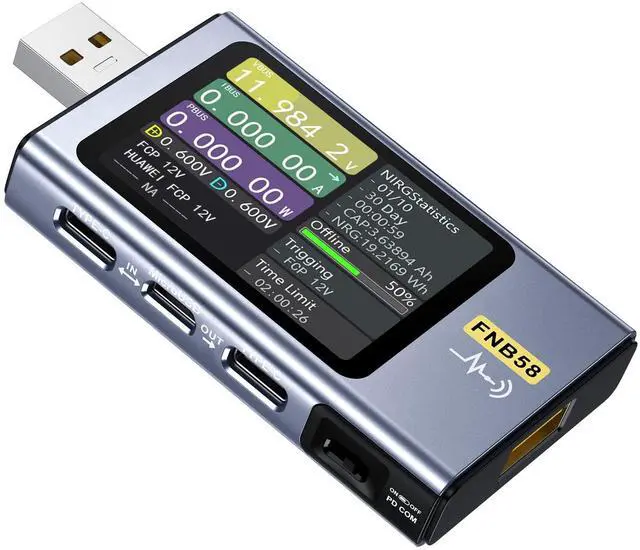

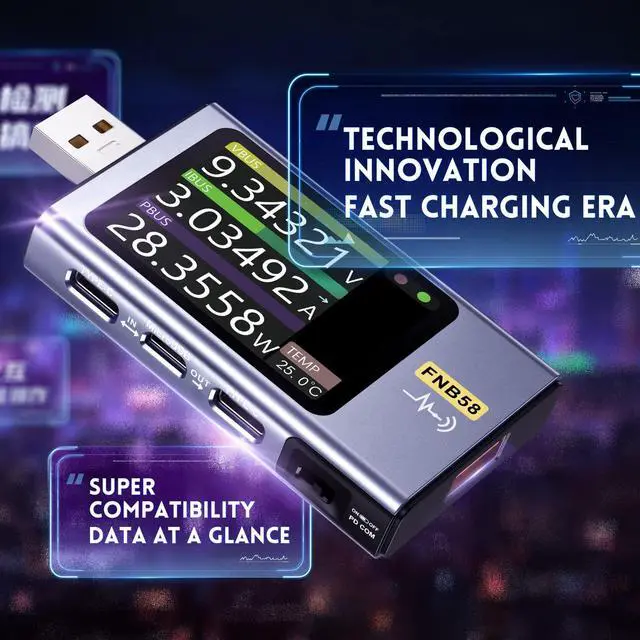

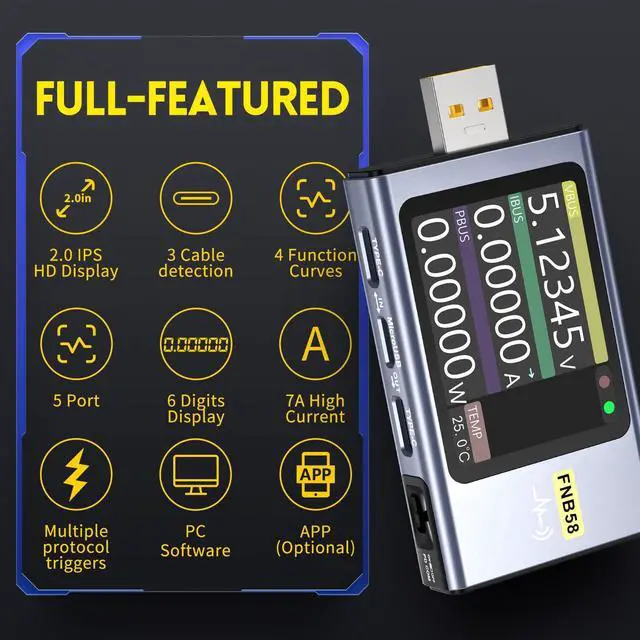

FNIRSI FNB58 is a high-reliability, high-safety versatile USB tester and fast charging trigger.

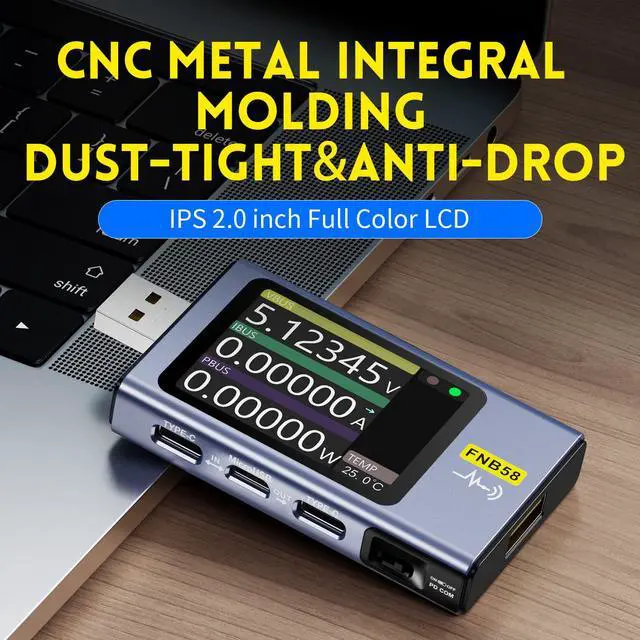

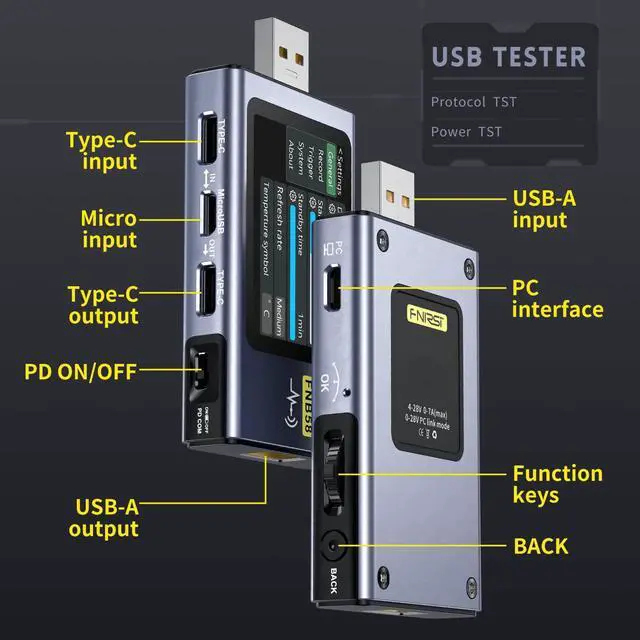

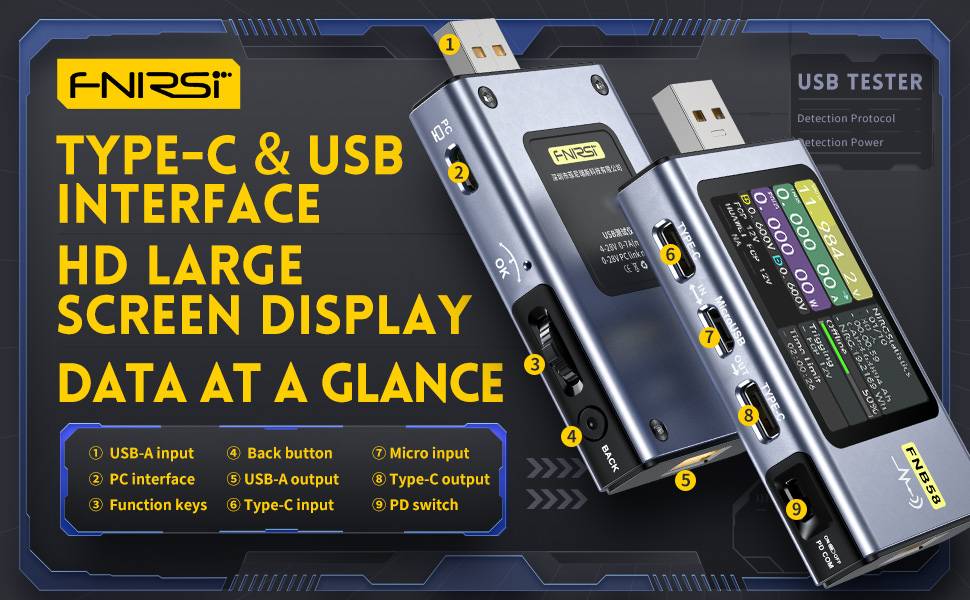

- FNB58 USB tester has a 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, Type-C interface.

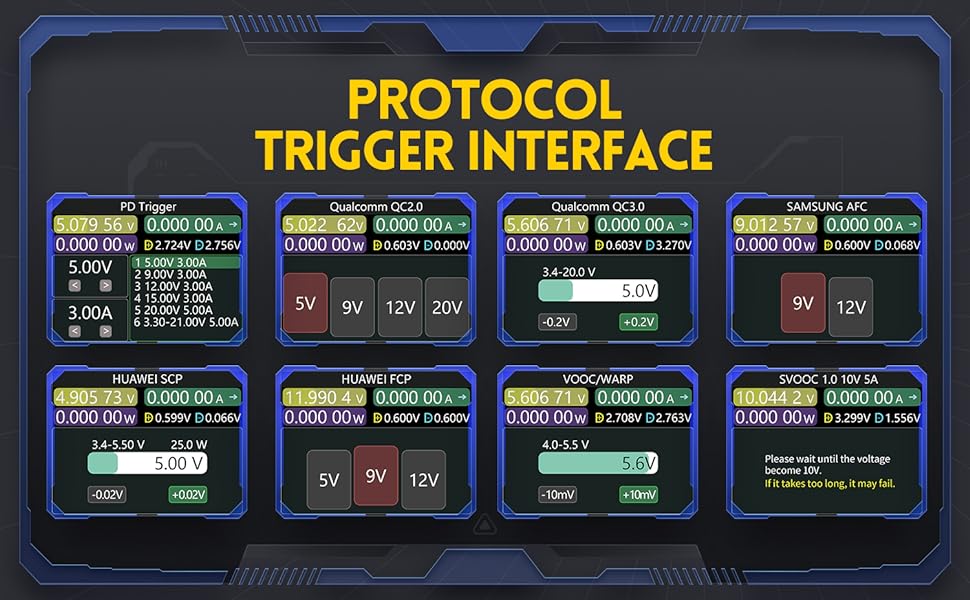

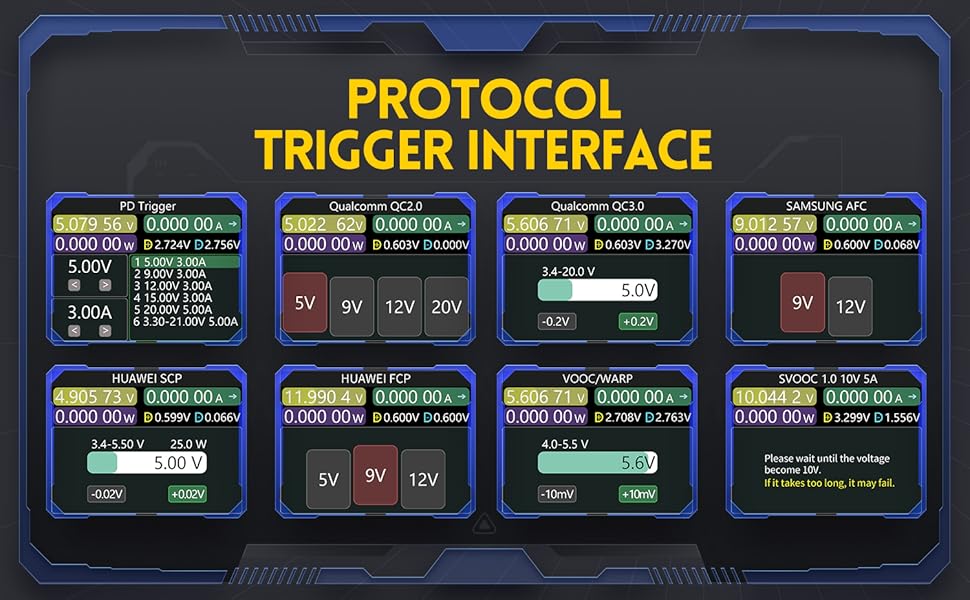

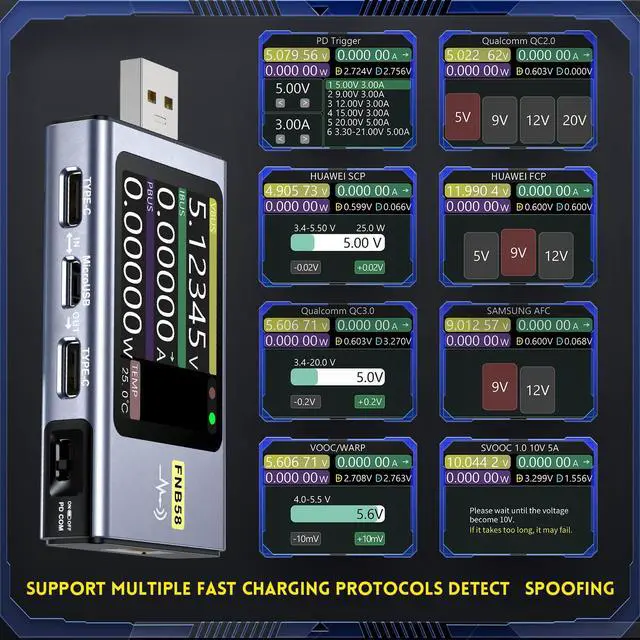

- FNB58 uses external 16-bit ADC, PD protocol physical chip, it can be used to test the fast charging protocol of chargers.
- FNB58 can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, and U disks.

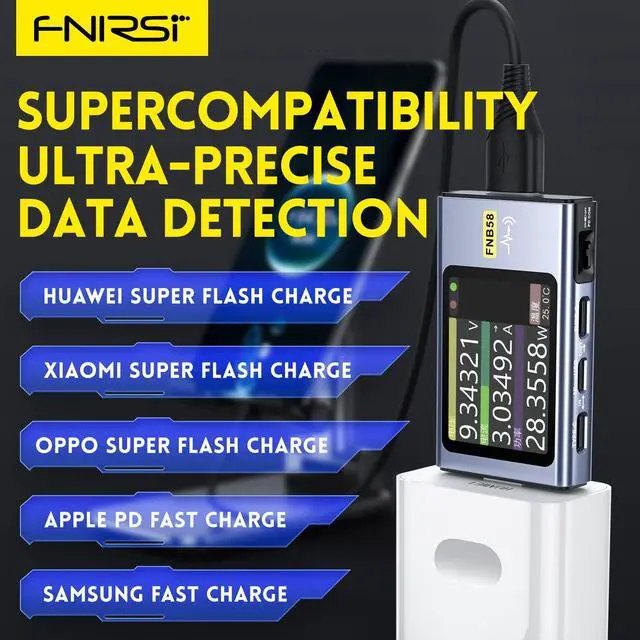

- FNB58 can be used to measure the charging power of mobile phones and the input and output of mobile power supplies.
Four Functional Curve Display
Real-time voltage and current curve
View the change of the charging curve in real time, find the abnormal charging immediately.
Offline curve recording
Supports up to 9 hours of offline voltage and current curve recording, charging process fully displayed.
D+/D- voltage curve
Charging protocols Changes. Master in real time.
High-speed power ripple measurement
Charger ripple measurement, easy to screen inferior chargers.
Cable Detection Just Use FNB58

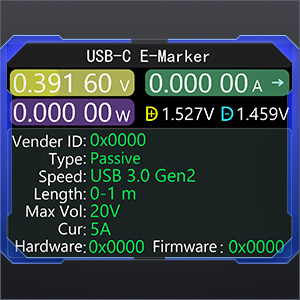

PD E-Marker Cable Detection
Read data information of CC line with E-Marker chip

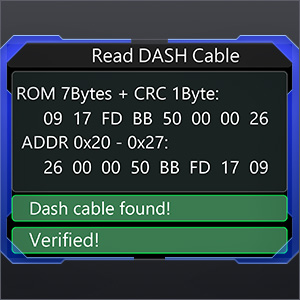

DASH Cable Detection
Read DASH cable chip related data

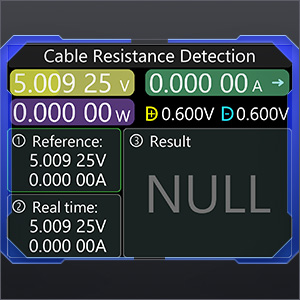

Cable Interal Resistance Measurement
Constant current load two-step fast measurement of wire resistance
 FNB58 USB Tester |  FNB58 Standard USB Tester |  FNB48 USB Tester |  DMT-99 Multimeter |  DMC-100 Clamp Meter | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |

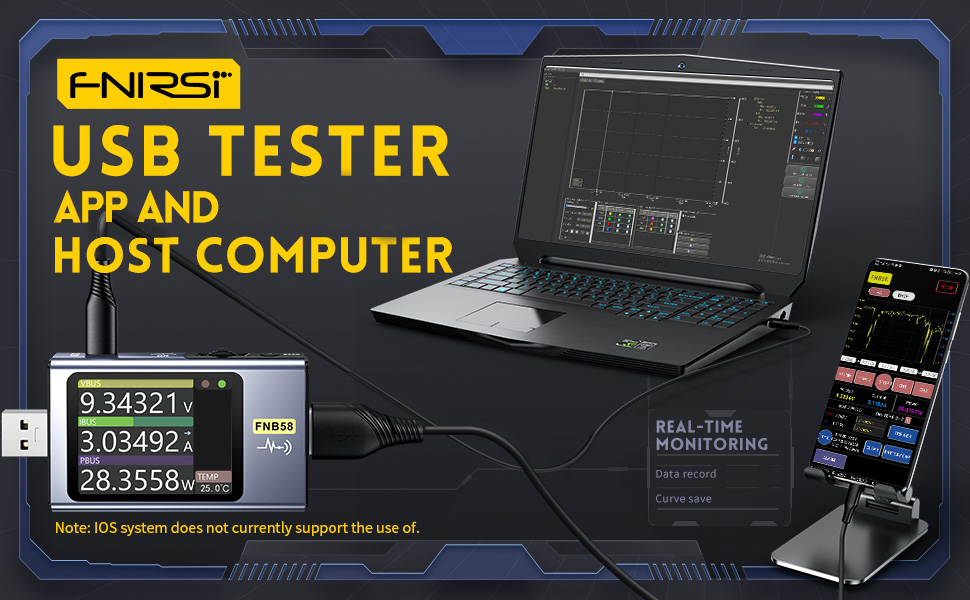

| APP software | ? | No | ? | No | No |
| USB power delivery 3.1/Xiaomi magic change PD | ? | ? | NO | NO | NO |
| QC4,QC4+\QC5 Huawei66W/240W | ? | ? | NO | NO | NO |
| Simulation switch: protocol conversion PC-PD simulation isolation is not damaged | ? | ? | NO | NO | NO |

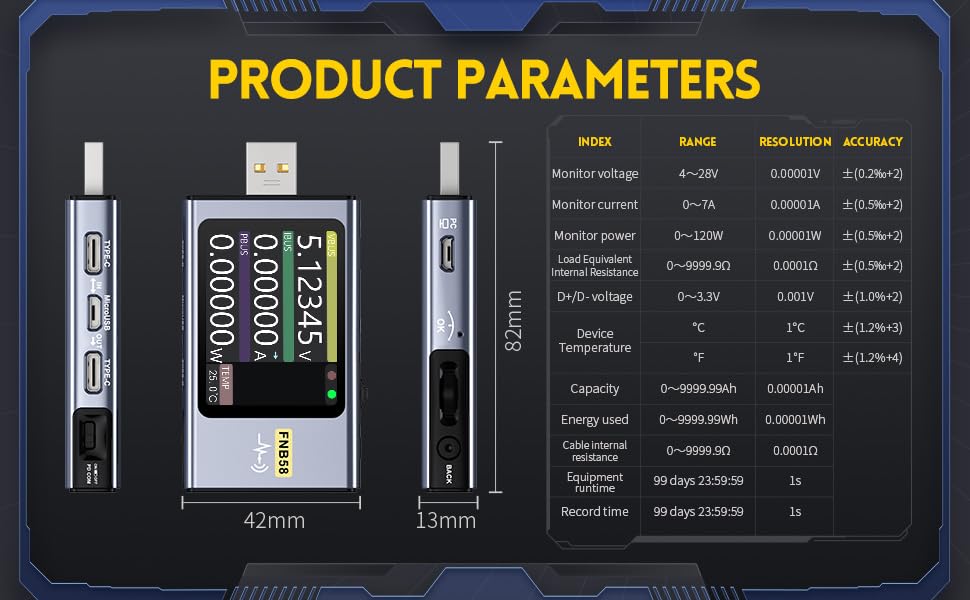

| Monitoring voltage/current/power | 4~28V/7A/140W | 4~28V/7A/140W | 4~24V/6.5A/156W | Non-USB tester | Non-USB tester |
| High -speed chain display | 50K -> 4M Sa/s | 50K -> 4M Sa/s | 50K->3.2MSa/s | Non-USB tester | Non-USB tester |
| High -speed ripple bandwidth | 400KHz | 400KHz | 320KHz | Non-USB tester | Non-USB tester |
| Multimeter Counts | No Multimeter | No Multimeter | No Multimeter | 9,999 TRMS | 9,999 TRMS |
| AC/DC Voltage | No Multimeter | No Multimeter | No Multimeter | AC:750V/DC:999.9V | AC:750V/DC:999.9V |
| AC/DC Current | No Multimeter | No Multimeter | No Multimeter | AC/DC:9999uA-9.999A | AC/DC:99.99A/600A |
