Compatible with LSI 9207-8i IT Mode. Controller: LSI SAS2308
- Firmware (FW): HBA IT Mode (Non-RAID); Data Transfer Rate: 6Gbps per port
.
- Host Interface: PCIe 3.0 x8; Internal Connectors: TWO Mini-SAS SFF-8087. --Direct attach up to 8 drives, and expand via external SAS Expander for large arrays
.
- PERFECT FOR: ZFS, FreeNAS/TrueNAS, unRAID, Proxmox, ESXi passthrough, Linux/BSD/Windows Server storage
.
2x SFF-8087 to 4x SATA Cables. 8-Port 6Gbps PCIe 3.0 x8

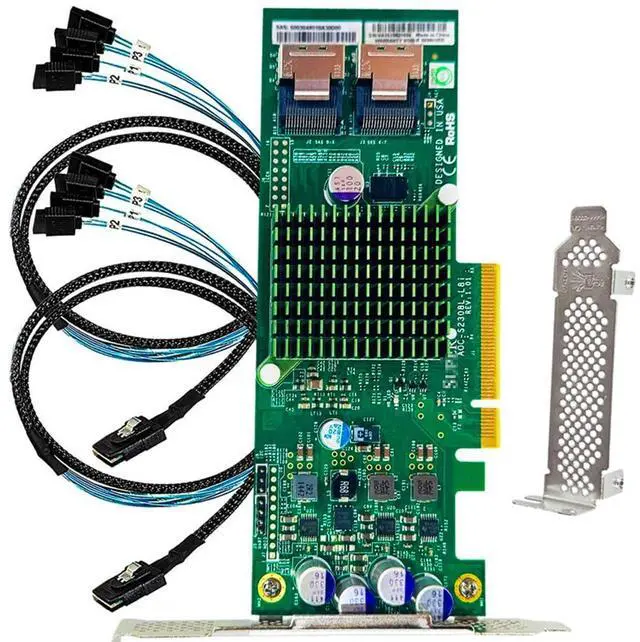

Packing List: HBA Card ×1; 2× SFF-8087 to 4× SATA cables (for 8 SATA drives)
--Cables in box are for SATA drives. They are not compatible with SAS drives. To connect SAS drives, use SFF-8087 to 8482 SAS cables (sold separately) or our matched HBA + cable kit

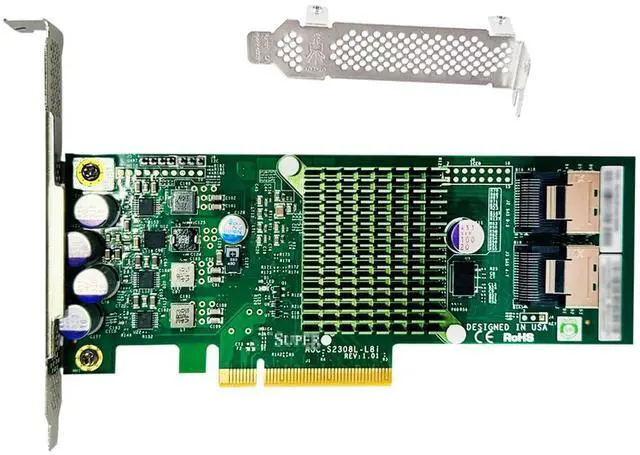

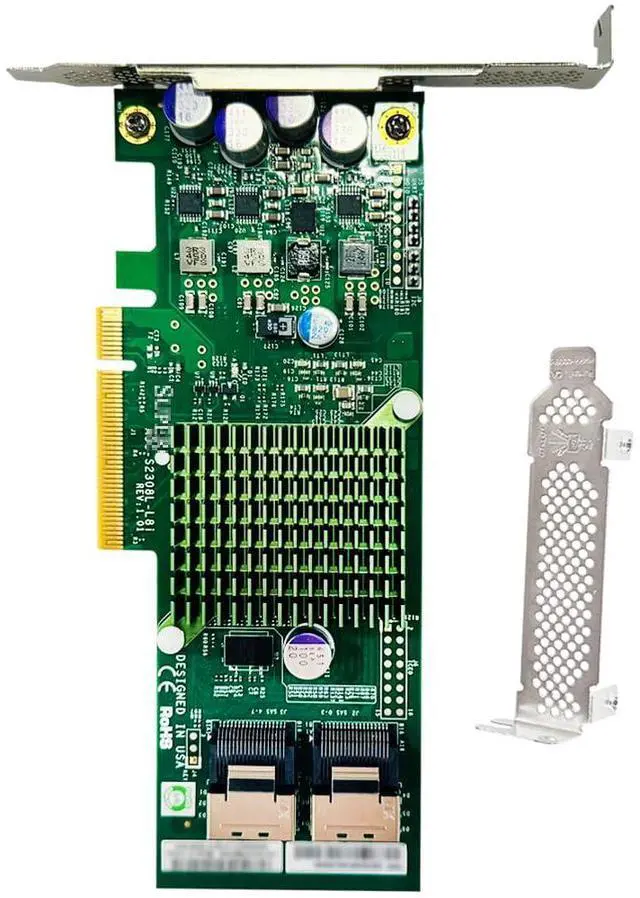

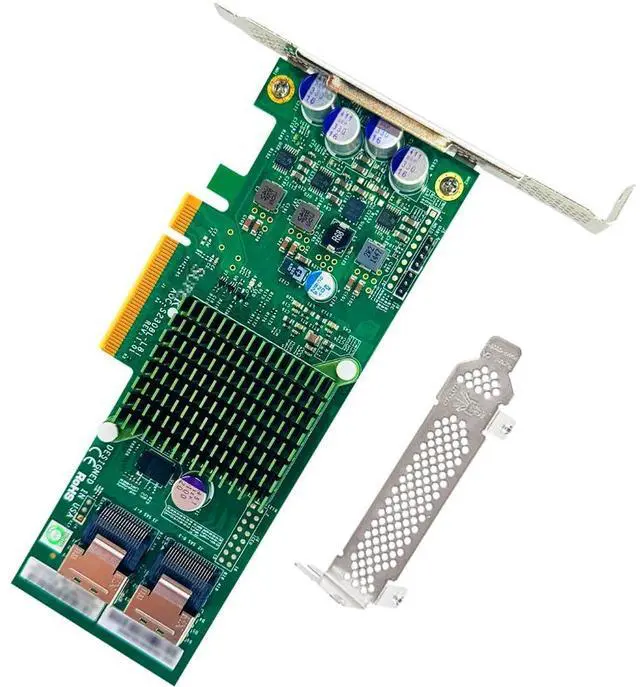

Built around the LSI SAS2308 controller, this HBA is a proven 6Gbps SAS/SATA solution for DIY NAS and homelab storage. In HBA IT Mode, it presents each drive directly to the OS for clean JBOD/ZFS workflows—ideal for TrueNAS/FreeNAS, unRAID, Proxmox, ESXi passthrough, and Linux/BSD/Windows Server.
The card provides PCIe 3.0 x8 bandwidth and two internal Mini-SAS SFF-8087 connectors. Out of the box, we include 2× SFF-8087 to 4× SATA breakout cables so you can direct-attach up to 8 SATA HDD/SSD immediately. Need more capacity? Add an external SAS expander to scale to larger pools while keeping management simple.
Note: The included cables are for SATA drives only. If you plan to use SAS HDDs, please use SFF-8087 to 8482 SAS cables with power (sold separately) or choose our matched HBA + cable kit.
 LANPAN 2PCS SFF-8643 to 4X SFF-8482 Mini SAS HD Breakout Cable 1.6ft/0.5m, 12... |  SFF-8087 to 4×SATA Forward Breakout Cable 1.6ft/0.5m – Mini SAS 36-Pin to 4×7... |  10GbE SFP+ Network Card Compatible with X520-DA2 PCIe Ethernet Card with 8259... |  SAS HBA Card Compatible with LSI 9211-8i IT Mode PCIe SATA Expansion Card, 8-... |  SAS HBA Card Compatible with LSI 9500-8i IT Mode PCIe SATA Expansion Card, 8-... |  SAS HBA Card Compatible with LSI 9300-8i IT Mode PCIe SATA Expansion Card, 8-... | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — no data | — |
| Product name | Breakout Cable | Breakout Cable | Network Card | HBA IT Mode | HBA IT Mode | HBA IT Mode |
| Controller | × | × | X520-DA2 | SAS2008 | SAS3808 | SAS3008 |
| Data Transfer Rate | 12Gbps | 6Gbps | 10GbE | 6Gbps | SAS 12Gbps , SATA 6Gbps | 12Gbps |
| Internal Connectors | × | × | 2× SFP+ 10GbE | 2× Mini-SAS SFF-8087 | 1× SlimSAS SFF-8654 x8 | 2× Mini-SAS HD SFF-8643 |
| Cable | 2PCS SFF-8643 to 4×SFF-8482 SAS | SFF-8087 to 4×SATA | × | × | SFF-8654 to 8× SATA | 2× SFF-8643 to 4× SATA |
Compatible with LSI 9207-8i IT Mode. Controller: LSI SAS2308
- Firmware (FW): HBA IT Mode (Non-RAID); Data Transfer Rate: 6Gbps per port
.
- Host Interface: PCIe 3.0 x8; Internal Connectors: TWO Mini-SAS SFF-8087. --Direct attach up to 8 drives, and expand via external SAS Expander for large arrays
.
- PERFECT FOR: ZFS, FreeNAS/TrueNAS, unRAID, Proxmox, ESXi passthrough, Linux/BSD/Windows Server storage
.
2x SFF-8087 to 4x SATA Cables. 8-Port 6Gbps PCIe 3.0 x8
Packing List: HBA Card ×1; 2× SFF-8087 to 4× SATA cables (for 8 SATA drives)
--Cables in box are for SATA drives. They are not compatible with SAS drives. To connect SAS drives, use SFF-8087 to 8482 SAS cables (sold separately) or our matched HBA + cable kit
Built around the LSI SAS2308 controller, this HBA is a proven 6Gbps SAS/SATA solution for DIY NAS and homelab storage. In HBA IT Mode, it presents each drive directly to the OS for clean JBOD/ZFS workflows—ideal for TrueNAS/FreeNAS, unRAID, Proxmox, ESXi passthrough, and Linux/BSD/Windows Server.
The card provides PCIe 3.0 x8 bandwidth and two internal Mini-SAS SFF-8087 connectors. Out of the box, we include 2× SFF-8087 to 4× SATA breakout cables so you can direct-attach up to 8 SATA HDD/SSD immediately. Need more capacity? Add an external SAS expander to scale to larger pools while keeping management simple.
Note: The included cables are for SATA drives only. If you plan to use SAS HDDs, please use SFF-8087 to 8482 SAS cables with power (sold separately) or choose our matched HBA + cable kit.
LANPAN 2PCS SFF-8643 to 4X SFF-8482 Mini SAS HD Breakout Cable 1.6ft/0.5m, 12... | SFF-8087 to 4×SATA Forward Breakout Cable 1.6ft/0.5m – Mini SAS 36-Pin to 4×7... | 10GbE SFP+ Network Card Compatible with X520-DA2 PCIe Ethernet Card with 8259... | SAS HBA Card Compatible with LSI 9211-8i IT Mode PCIe SATA Expansion Card, 8-... | SAS HBA Card Compatible with LSI 9500-8i IT Mode PCIe SATA Expansion Card, 8-... | SAS HBA Card Compatible with LSI 9300-8i IT Mode PCIe SATA Expansion Card, 8-... | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — no data | — |
| Product name | Breakout Cable | Breakout Cable | Network Card | HBA IT Mode | HBA IT Mode | HBA IT Mode |
| Controller | × | × | X520-DA2 | SAS2008 | SAS3808 | SAS3008 |
| Data Transfer Rate | 12Gbps | 6Gbps | 10GbE | 6Gbps | SAS 12Gbps , SATA 6Gbps | 12Gbps |
| Internal Connectors | × | × | 2× SFP+ 10GbE | 2× Mini-SAS SFF-8087 | 1× SlimSAS SFF-8654 x8 | 2× Mini-SAS HD SFF-8643 |
| Cable | 2PCS SFF-8643 to 4×SFF-8482 SAS | SFF-8087 to 4×SATA | × | × | SFF-8654 to 8× SATA | 2× SFF-8643 to 4× SATA |
SFF-8643 SAS HBA Card
SFF-8643 SATA HBA Card
SFF-8087 SATA HBA Card
SFF-8087 SAS HBA Card
SFF-8643 to 4x SFF-8482 SAS HD
SFF-8087 to 4×SATA Cable
