What are the frequency bands supported by the Intel WiFi 6E AX210?

The Intel WiFi 6E AX210 supports frequency bands of 2.4 GHz, 5 GHz, and 6 GHz.

What is the maximum data rate supported by the Intel WiFi 6E AX210 wireless network adapter?

The Intel WiFi 6E AX210 can deliver peak data rates of up to 2.4Gbps when using Wi-Fi 6 technology with 1024QAM and 160MHz channels.

double click image to zoom in

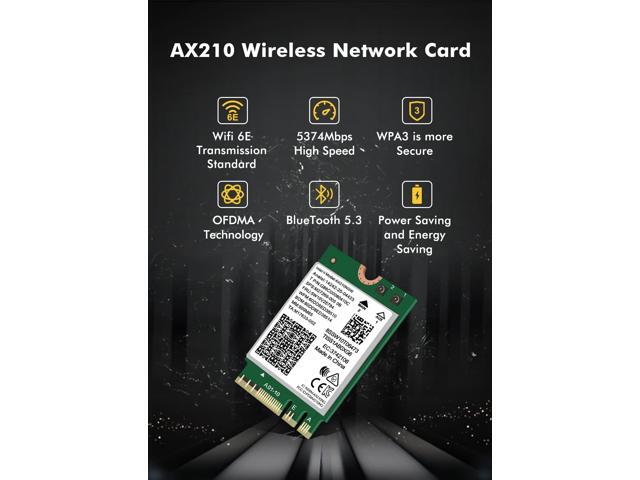

WiFi 6E Wireless Card Intel AX210 NGW Bluetooth 5.3 Tri-Band 5400Mbps Network Adapter for Laptop Support Windows 10/11 (64bit) M.2/NGFF

Wi-Fi 6E: With Intel Wi-Fi 6E technology network adapter provides strong performance and good compatibility, while reducing power consumption and improving service life.

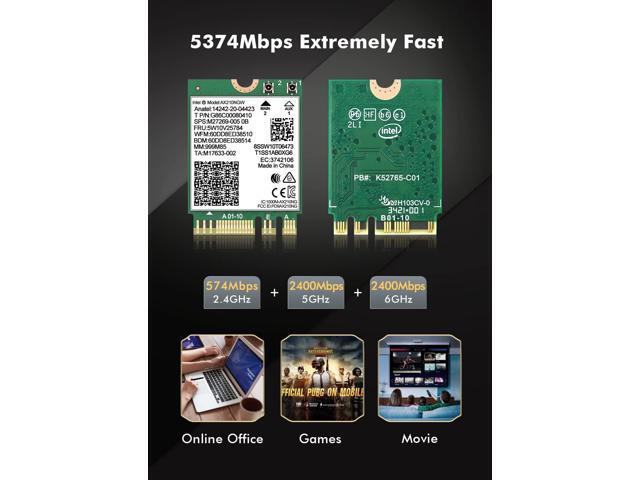

AX210 NGW Wireless LAN Card: Provides tri-band (6GHz, 5GHz and 2.4GHz) signal. Maximum speed up to 5374Mbps(2400Mbps @6GHz + 2400Mbps @5GHz + 574Mbps @2.4GHz).

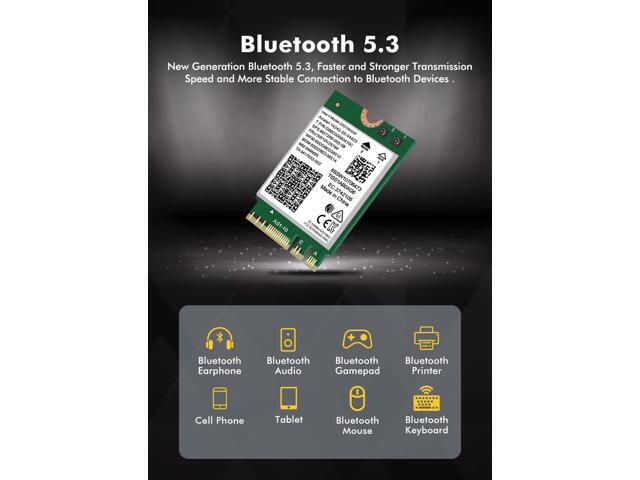

Bluetooth 5.3: Based on Bluetooth 5.2, Bluetooth 5.3 adds LE enhanced connection/Host set Controller key length function/LE channel hierarchy function. Make Bluetooth 5.3 lower latency, stronger anti-interference, improve battery life.

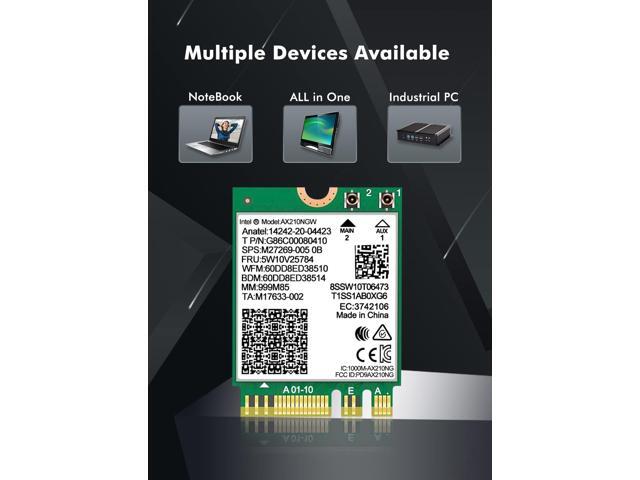

Installation Requirements: For motherboards with Intel CPU and M.2 network slot, NGFF M2 2230 A/E key. Not supported CNVIo2 protocol M.2 slot and mini PCIe slot laptops.

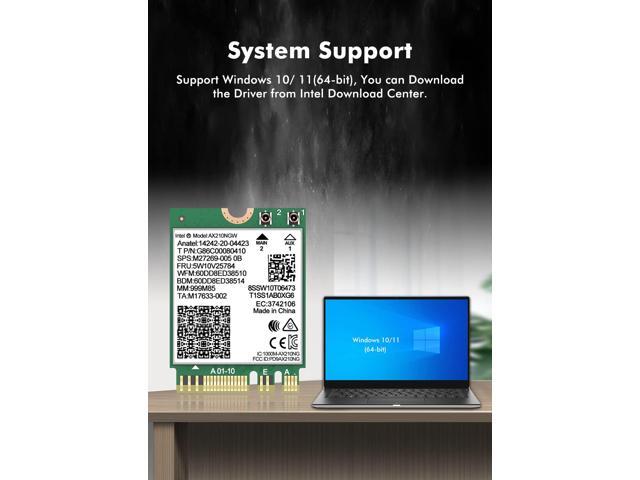

Compatible System: Support Windows 11/10 64-bit, Wi-Fi and Bluetooth drivers need to be installed on the running PC (search "AX210NGW" from Intel website to download and install Wi-Fi and Bluetooth drivers).
Warranty: We provide a year warranty and lifetime technical support for AX210 WIFI card.
